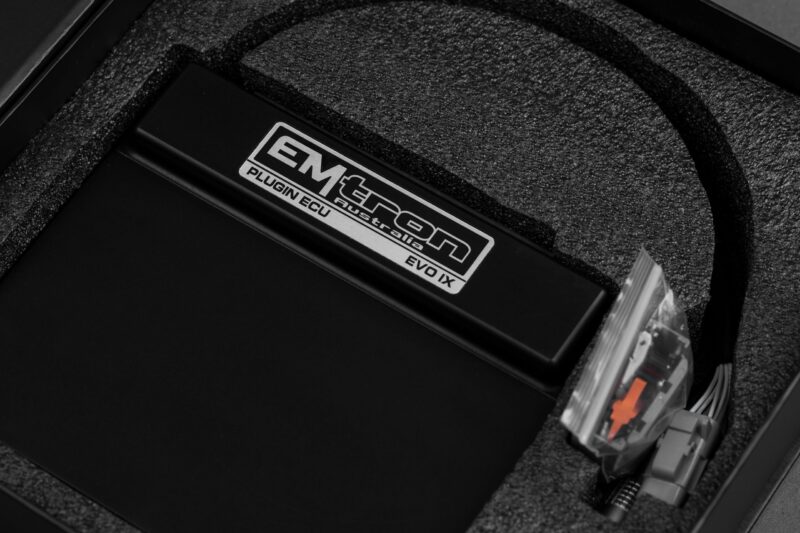

EVO IX PLUGIN ECU (including 8 MR)


“Our Plugin ECU Series merges the extreme power of our race proven KV series ECU with the convenience of connecting directly into the factory vehicle connector system”

ECU Overview

  • 6061 Aluminium CNC Billet Enclosure
  • Dual 100MHz Processors
  • 32MB ECU Logging (Over 600 Channels)
  • Ethernet High Speed Communications
  • Up to 4 Ignition Outputs (Re assign factory pins)
  • DBW Control (Re assign factory pins)
  • 3 Axis Accelerometer
  • 1 x CAN Bus (Expansion Connector)
  • 1 x Individual Cylinder Knock Control Input (Bosch)
  • Upgradable to run the Emtron Fuel model through installation of a Flex Meter, Fuel Temperature and Fuel Pressure Sensor
  • Compatible with all Emtron Motorsport features

Out of stock

SKU: 1609-5229 Category:


The Mitsubishi EVO 9 ECU is designed to be plugged into the OEM harness to allow for a true “Plug and Play” install. The system is based on the KV Series Motorsport ECU, so all the same features are available with the limitation based around the OEM connector system. An Expansion loom is included giving access to unused Input channels. CAN Bus 2 is also available providing additional I/O expandability.


[download id=”2561″]

Additional information

Weight 1.03 kg
Dimensions 21 × 17 × 6 cm
